FILTERS
Clean filters

Serie

Phase current

70

140

145

210

252

280

336

kvar (50 Hz)

100

kvar (60 Hz)

100

System

3 wires, 230...480 V

3 wires, 500 ... 690 V

4 wires, 440 ... 550 V

Use voltage (V)

480

550

690

7 RESULTS

SVGm-3WF-100C-480

Static Var Generator with multilevel technology

R4T3F2.

SVGm-3WP-100C-480, Static Var Generator with multilevel technology; EMI filter: 1; System: 3 wires, 230...480 V; kvar (230 V): 57,5; kvar (400 V): 100; kvar (440 V): 100; kvar (480 V): 100; Phase current (A): 145; Use voltage (V): 480

Static Var Generator

SVGm-3WF-300C-690

Static Var Generator with multilevel technology

R4P5F4.

SVGm-3WF-300C-690, Static Var Generator with multilevel technology; EMI filter: 1; System: 3 wires, 500 ... 690 V; kvar (500 V): 216; kvar (690 V): 300; Phase current: 210; Use voltage (V): 690; kvar (550 V): 237

Static Var Generator

SVGm-3WF-400C-690

Static Var Generator with multilevel technology

R4P5F5.

SVGm-3WF-400C-690, Static Var Generator with multilevel technology; EMI filter: 1; System: 3 wires, 500 ... 690 V; kvar (500 V): 288; kvar (690 V): 400; Phase current: 280; Use voltage (V): 690; kvar (550 V): 316

Static Var Generator

SVGm-4WF-067C-550

Static Var Generator with multilevel technology

R4P6FG.

SVGm-4WF-067C-550, Static Var Generator with multilevel technology; EMI filter: 1; System: 4 wires, 440 ... 550 V; kvar (440 V): 53; kvar (480 V): 58; Phase current: 70; Use voltage (V): 550; kvar (550 V): 67

Static Var Generator

SVGm-4WF-134C-550

Static Var Generator with multilevel technology

R4P6FH.

SVGm-4WF-134C-550, Static Var Generator with multilevel technology; EMI filter: 1; System: 4 wires, 440 ... 550 V; kvar (440 V): 106; kvar (480 V): 116; Phase current: 140; Use voltage (V): 550; kvar (550 V): 134

Static Var Generator

SVGm-4WF-201C-550

Static Var Generator with multilevel technology

R4P6FJ.

SVGm-4WF-201C-550, Static Var Generator with multilevel technology; EMI filter: 1; System: 4 wires, 440 ... 550 V; kvar (440 V): 159; kvar (480 V): 174; Phase current: 210; Use voltage (V): 550; kvar (550 V): 201

Static Var Generator

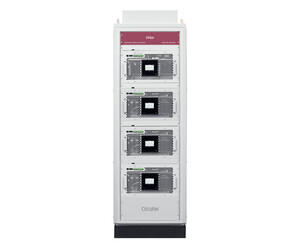

SVGm-4WF-268C-550

Static Var Generator with multilevel technology

R4P6FK.

SVGm-4WF-268C-550, Static Var Generator with multilevel technology; EMI filter: 1; System: 4 wires, 440 ... 550 V; kvar (440 V): 212; kvar (480 V): 232; Phase current: 280; Use voltage (V): 550; kvar (550 V): 268

7 RESULTS
