Three-phase energy meters indirect connection

Three-phase energy meters

410-QT5B-A0B10

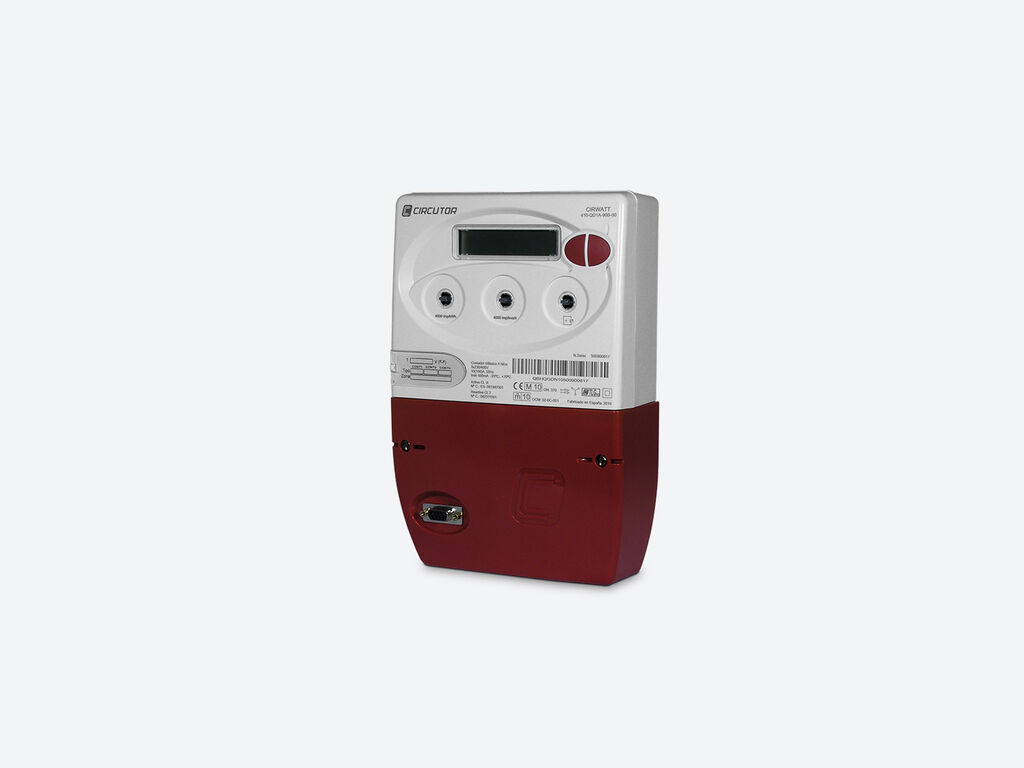

410-QT5B-A0B10, Three-phase energy meter indirect connection

Code: QB8E0

  • Communications: RS-232 | Ethernet
  • Class (Active/Reactive): B (1) / 2
  • System: Three-phase
  • Measure: Indirect
  • Measurement Range (V): 3x230/400
  • Measurement Range (A): …/5
  • Quadrants: 4
  • Frequency (Hz): 60

INFORMATION

Description

CIRCUTOR’s CIRWATT-B410T is a standard three phase indirect meter. It is the result of all the technological developments which is experiencing the current market. These changes have created new needs and requirements both in terms of more flexible rates, new communication system and price optimization. Providing to the market a robust and competitive meter fully complying with the new European Directive MID (EN 50470) and all the relevant IEC’s.

Applications

CIRWATT-B410T is suitable to be installed in LV and MV networks being the best solution or installations with high and medium consumptions like shopping malls, industries and high consumption households.

Do you need more information about this product?

If you have any questions, let's talk.

Talk to a specialist

SPECIFICATIONS

AC power supply
Tolerance
80 % ... 115 % Un
Consumption
< 2 W; < 10 VA
Frequency
50 / 60 Hz
Nominal voltage
3 x 230 (400) V
Battery specification
Performance-guarantee
> 20 years @ 30 ºC
Type
Lithium
Mechanical characteristics
Size (mm) width x height x depth
172 x 255 x 67 (mm)
Envelope
DIN 43859
Weight (kg)
0,67
Environmental characteristics
Relative humidity (without condensation)
95 % max.
Storage temperature
-40 ... +85 ºC
Working temperature
-40 ... +70 ºC
Voltage measurement circuit
Connection
Asymmetrical
Consumption
< 2 W; 10 VA
Nominal frequency
50 / 60 Hz
Nominal voltage
3x230/400 V
Current measurement circuit
Consumption
< 0,1 V·A
Reference current (Iref)
…/ 5 A
Maximum current
10 A
Minimum current measurement
< 0,5 x Itr
Communications
Type
RS-232 / Ethernet
Optical communication interface
Hardware
IEC 62056-21
Protocol
REE, based on IEC 870-5-142
Type
Serial;bi-directional
User interface
Resolution of the display
up to 8 digits (8 mm)
Display type
LCD
Memory
Memory capacity
Data: non-volatile memory, Setup and events: serial-flash
Write time
4000
Type
Serial flash
Standards
Standards
UNE-EN 50470-1 Electricity metering equipment (a.c.) -- Part 1: General requirements, tests and test conditions - Metering equipment -class indexes B-) UNE-EN 50470-3 Electricity metering equipment (a.c.) -- Part 3: Particular requirements - Static meters for active energy -class indexes B-) IEC 62052-11, IEC 62053-21, IEC 62053-22 (Standards for static active energy meters for alternating current of class 0.2s, 0.5s) UNE-EN 55022 (Conducted Emissions: Class B, Radiated Emissions: Class B) UNE-EN 61000-4-2, UNE-EN 61000-4-3, UNE-EN 61000-4-4, UNE-EN 61000-4-5, UNE-EN 61000-4-6, UNE-EN 61000-4-8, UNE-EN 61000-4-11
PLC
Hardware
CENELEC A or CENELEC B
Protocol
CirPLC & PEP (PLC Encapsulated Protocol)
Modulation system
DSCK with repeater system
Measurement accuracy
Reactive energy measurement (kvarh)
IEC 62053-23 (Class 2)
Active energy measurement (kWh)
EN 50470 (Class B) IEC 62053-21 (Class 1)
Features / performance
Billing closures
12 locks per contract. Programable date and hour
Load curve
2 load curves, programmable integration time (1 … 253 min)
Optional
Communications: RS-232 / PLC ,RS-485 / PLC, RS-232 / RS-232 , RS-485 / RS-485, RS-232 / RS-485, RS-232 / Ethernet, R-485 / Ethernet. Expansion boards: No inputs / outputs, 4 relay outputs (Rate Indicator), 2 relay inputs / 4 pulse outputs, 4 pulse inputs, Differential current measurement, 2 relay outputs / 2 pulse outputs, / 2 pulse inputs
Tariff programming
12 days 10 types of data 9 types of tariffs 30 public holidays 12 special days
Clock
Source
Temperature compensated oscillator
Accuracy (EN 61038)
< 0,5 s/day (23 ºC)
Type
Gregorian calendar
