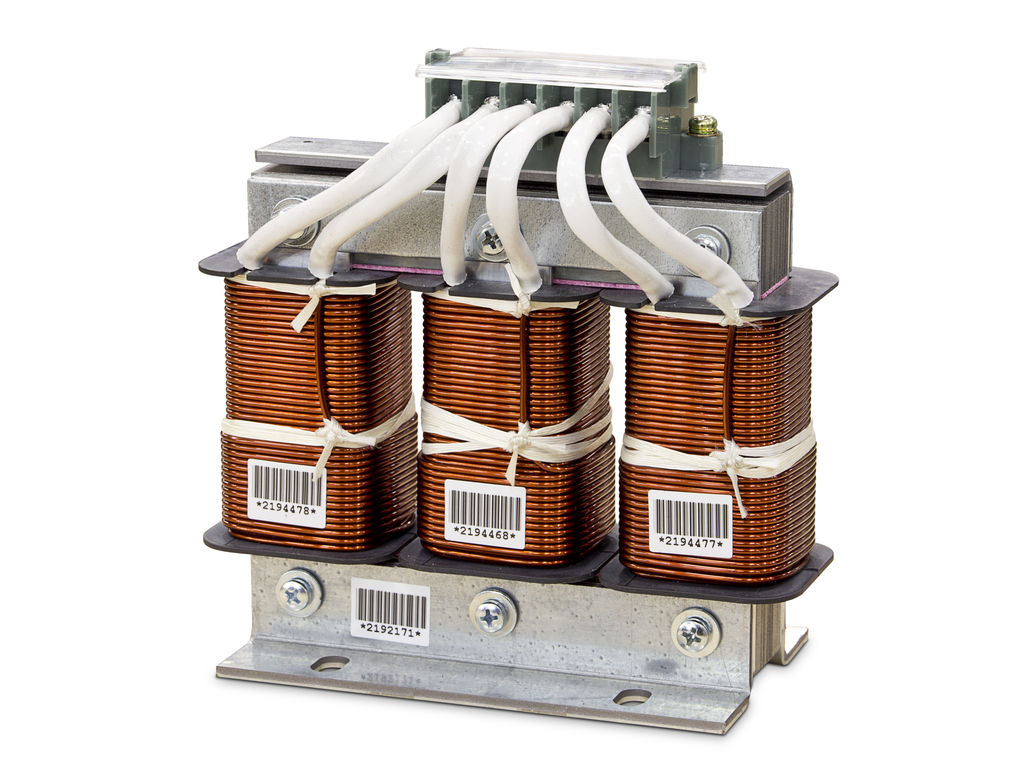

Filter reactors for power converters (network side), 50 Hz.

LR 04-066

LR 04-066, Filter reactors for power converters

Code: P7030D.CONSULTAR DISPONIBILIDAD

  • L(mH): 0,49
  • In (A): 64
  • Losses: 88
  • Motor P.: 30
  • Motor P. (CV): 41

SPECIFICATIONS

Mechanical characteristics
Size (mm) width x height x depth
180 x 197 x 120 (mm)
Envelope
Conductor type: copper wire
Weight (kg)
11
Environmental characteristics
Thermal Class
class F (+155 ºC) On request: class H (+180 ºC)
Protection class
IP 00
Ambient temperature
-10 … +45 ºC
Electrical characteristics
Linearity (5% L)
1,5 In
Maximum transient current
2 In (1 min)
Voltage
up to 1000 V~
Tolerance L
± 5 %
L value (mH)
0.49
Insulation voltage, circuit
4 kV
Current measurement circuit
Nominal current (In)
According to table. Other values on request
Allowable overload
1,7 In
Permanent overload
1,7 In
Standards
Standards
UNE-EN 60289 , IEC 60076
