Capacitores trifásicos de potencia bitensión, 6 terminales

CSB-4069/7,5

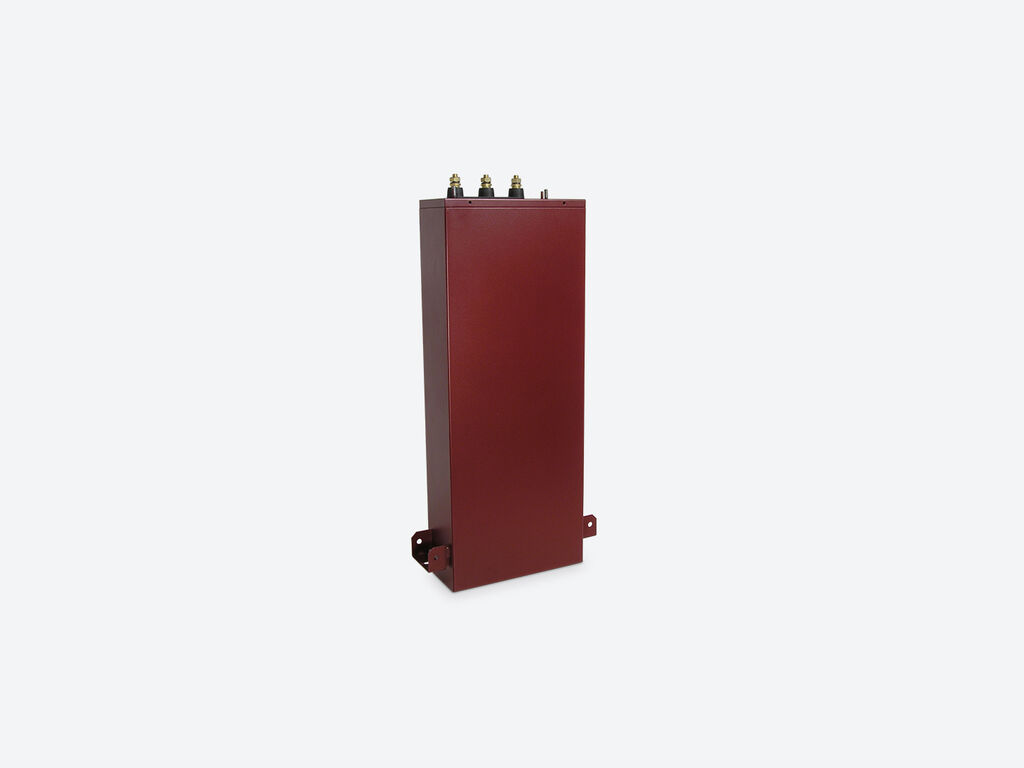

CSB-4069/7,5, Condensador trifásico bitensión para baja tensión

Código: R2329A.

  • kvar 50 Hz: 7.5
  • kvar 60 Hz: 9
  • Tensión de uso (V): 400 | 690

ESPECIFICACIONES

AC power supply
Frequency
50 ó 60 Hz
Electrical characteristics
Surge
10 % 8 h sobre 24 h 15 % hasta 15 min sobre 24 h 20 % hasta 5 min sobre 24 h 30 % hasta 1 min sobre 24 h
Insulation voltage, circuit
3 / 15 kV
Discharge resistance
75 V / 3 min
Tolerance C
-5 … +15 %
Losses (W)
Dieléctricas: < 0,2 W / kvar Total: < 0,4 W / kvar
Permanent overload
1,3 In
Environmental characteristics
Working temperature
Tª clase D: Media diaria: 45 ºC, media anual: 35 ºC, máxima: 55 ºC, mínima: -25 ºC
Relative humidity (without condensation)
80%
Protection class
IP 42 con tapa cubrebornes
Mechanical characteristics
Envelope
Acero tratado y pintado color RAL 3005
Fastening
Vertical / Horizontal. Distancia mínima entre condensadores 4 cm
Thermal management
Natural o forzada según armario
Weight (kg)
4,1
Size (mm) width x height x depth
360 x 330 x 120 (mm)
Protection
Circuit breaker type
Regeneración dieléctrica Fusible interno Sistema de sobrepresión Vermiculita
Standards
Standards
IEC 60831-1, UNE-EN 60831-1
Electrical safety, Maximum height (m)
2000
